Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal

Name: Pitch 1270mm PCB Mount Terminal Block 2P 16P Phoenix Terminal
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TJ952-04-A1A3

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Contact Now

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal

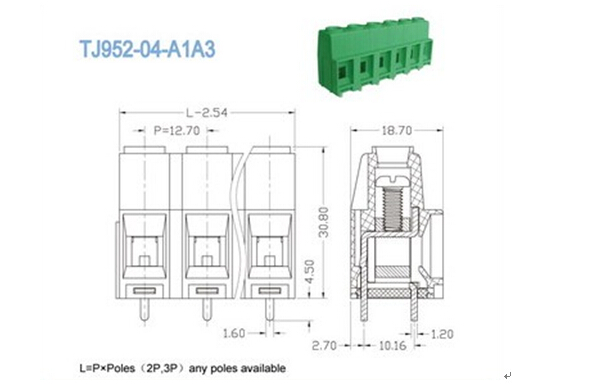

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/57	300/57
Wire Range AWG	6-22	6-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	1000 / 57	1000 / 57	1000 / 57
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	10
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ2.2
Stripping Length mm	9-11
Screw / Torque / lbf.in	M4 / 10.6-13

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pitch 12.70mm PCB Mount Terminal Block 2P - 16P Phoenix Terminal

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
