Steel / M3 Screw 7.62mm Screw Terminal Block With Pins 300V 15A

  • 1
  • 2

Brand Name : SCED

Model Number : TB762-05

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500pcs

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Item : Barrier

Pitch : 7.62mm

Wire range : 14-22 AWG

Insulation Material : PBT

Terminal : Brass

Screw : Steel/ M3

Poles : 4-20 P

Torque : 5-7 Ibf.in

Contact Now

Two Row Screw Barrier Terminal Block 7.62mm Fence Strips With Pins 300V 15A​​

Quick Detials:

Type: Screw type

Pitch: 7.62mm

Double level screw

AWG: 14-22

300V/15A

Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.6

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.

Competitive Advantage:

Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

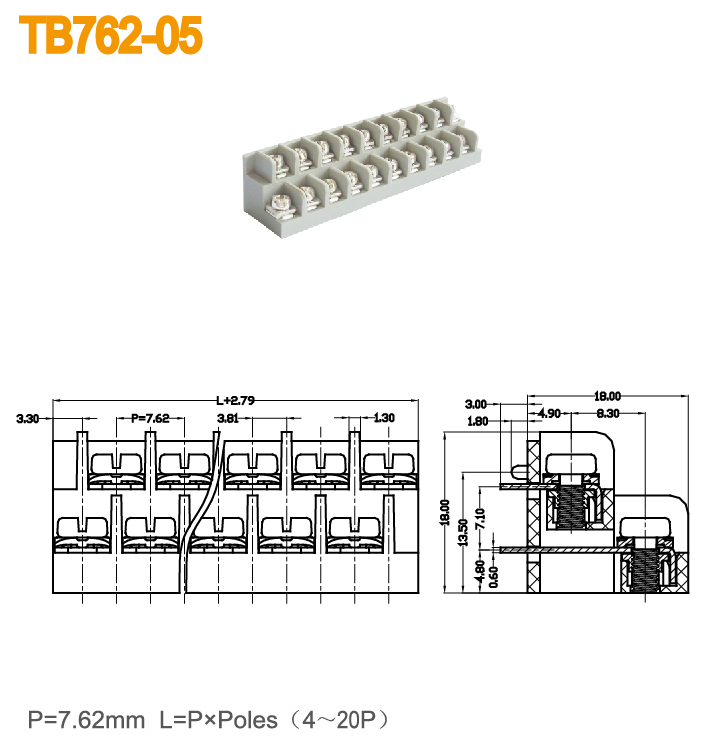

Drawing:

Steel / M3 Screw 7.62mm Screw Terminal Block With Pins 300V 15A

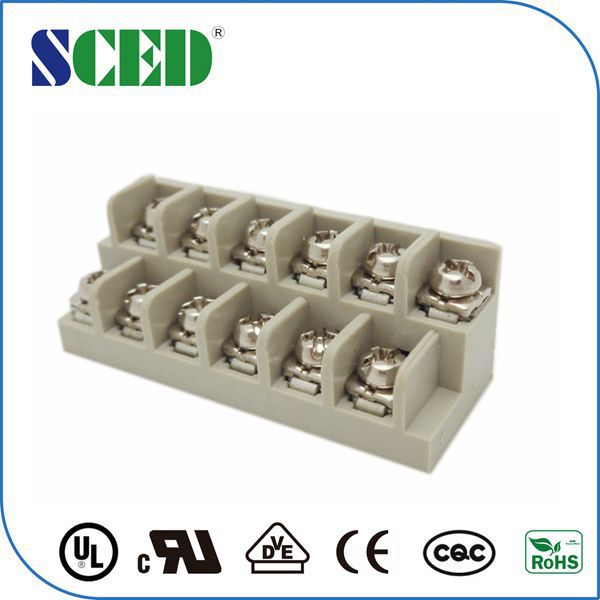

Photos:

Steel / M3 Screw 7.62mm Screw Terminal Block With Pins 300V 15A
