Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power

Name: Single Level Pluggable Terminal Block 2 24 Pin Pitch For LED Switch Power
Brand: SCED
Price: 1 USD

Quality Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power wholesale

Brand Name : SCED

Model Number : TB762-01

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Levels : Single Level

Wire Inlet : Right angle wire inlet

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-24P

Pitch : 7.62mm

Rated Current : 15A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 14-22 AWG

Contact Now

Single Level Barrier Terminal Block 2 - 24 Pin Pitch 7.62mm For LED Switch Power

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■ Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.

How to order:

Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military, Elevator, etc..

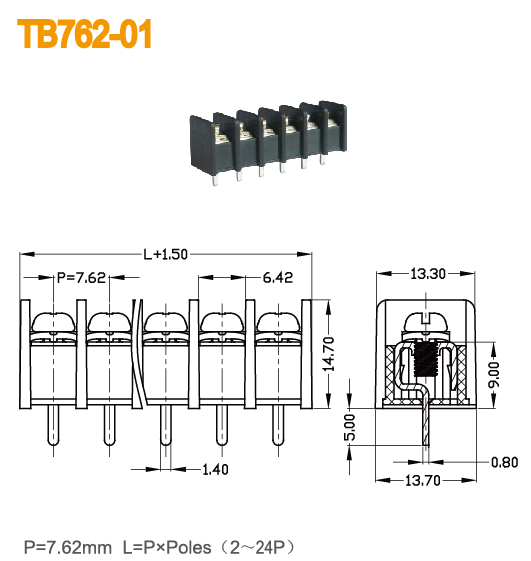

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 15 300 / 10
Wire Range AWG	14-22 14-22
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	250 / 24 320 / 24 400 / 24
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm2	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.8
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3/ 5-7

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Photos and Drawing
