2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

  • 1
  • 2

Brand Name : SCED

Model Number : TJ254-04

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Type : Spring Terminal Block,Screwless terminal blocks, Electrical terminal Blocks

Pitch : 2.54mm

Number Of Contacts : 3P

Wire Range : 18-28 AWG

Rated Voltage : 150V

Rated Current : 5A

Color : Grey

Applications : PCB, etc.

Material : PA66

Terminal : Phosphor Bronze

Contact Now

2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:
2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

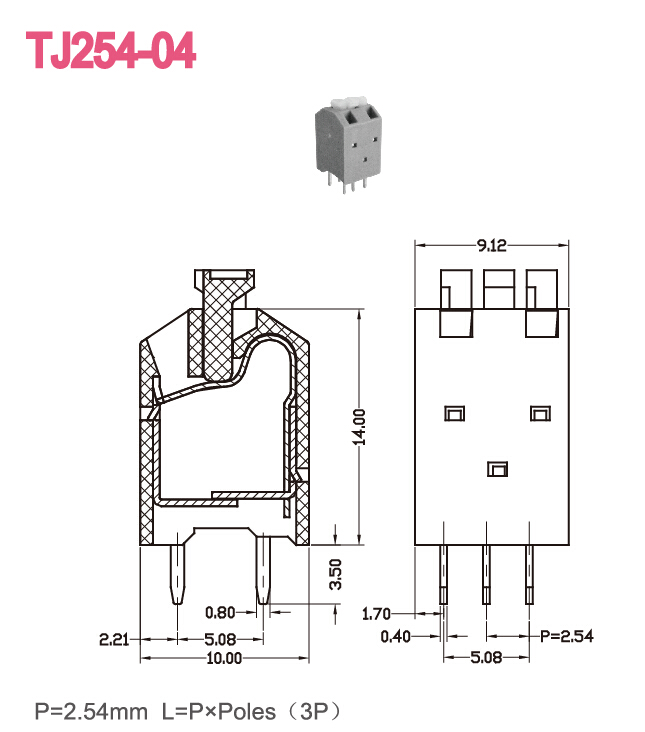

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

150/5

300/5

Wire Range AWG

18-28

18-28

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 5

250 / 5

400 / 5

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.0

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

8-9



2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
