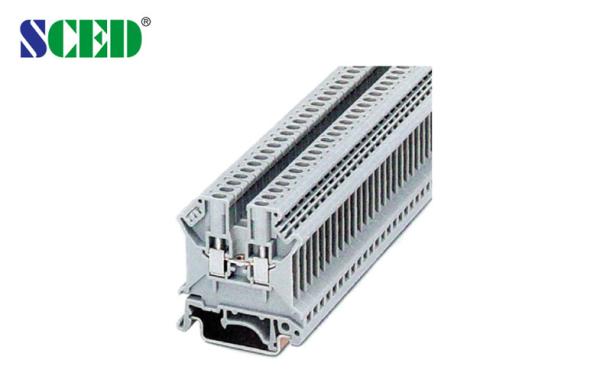

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Name: 52mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-3N

MOQ : 500

Price : Factory Price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Color : Grey

Deck : Single Deck

Type : Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

Width : 5.2mm

Wire Range : 28-12

Contact Now

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Detailed product Description:

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

How to order:

5.2mm Compact Din Rail Mounted Terminal Blocks For Power Supply 600V 20A

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-3N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-5 Imax: 30A
Insertion Bridge	EBL 10-5 Imax: 24A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB5
Screwdriver	SZS0.6×3.5
Rail Material	aluminum
Dimensions mm	5.2/42.5/2
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52
Screw / Torque Nm	M3 / 0.6-0.8
Stripping Length mm	8
IEC Technical Data
Max. Load Current / Cross Section A / mm²	32 / 4
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
