Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block

Name: Pitch 1450mm 600V 40A 4 14P Barrier Terminal Block Power Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE, CQC

Model Number : TB1450-00-D5-C

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block

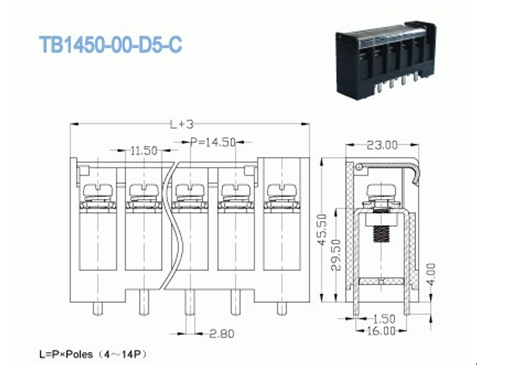

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 40	600 / 40	600 / 5
Wire Range AWG	202-8	22-8	22-8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 40	800 / 40	1000 / 40
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	1.9x3.2
Stripping Length mm	12-15
Screw / Torque / lbf.in	M 5 / 18-20

Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
