Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation

Name: Black High Current Power Terminal Block Pitch 2000mm 600V 80A For Rail Transportation
Brand: SCED
Price: 1 USD

Quality Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR80-01-BM0-N2

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Pitch : 20.00mm

Rated Voltage : 600V

Rated Current : 80A

Color : Black

Number Of Contacts : Any Poles Available

Wire Range : 4-20

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

Black High Current Power Terminal Block Pitch 20.00mm 600V 80A For Rail Transportation

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

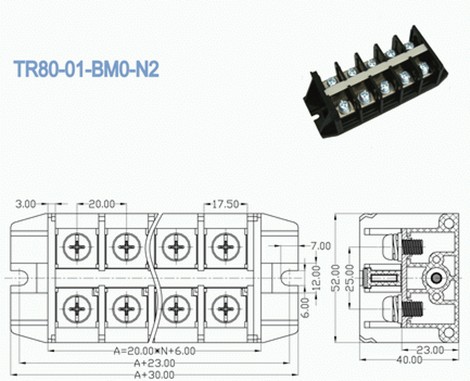

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 80	600 / 80
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 80	1000 / 68	1000 / 80
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	22
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	12-15
Screw / Torque / lbf.in	M6 / 18-22

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
