27 x 2 Pin Barrier Terminal Block , Double Levels Power Terminal Blocks Pitch 8.20mm

Name: 27 x 2 Pin Barrier Terminal Block Double Levels Power Terminal Blocks Pitch 820mm
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB820-00

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 27*2P

Pitch : 8.20mm

Rated Current : 10A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 14-22

Levels : Double levels

Wire Inlet : Right angle wire inlet

Contact Now

27 x 2 Pin Barrier Terminal Block , Double Levels Power Terminal Blocks Pitch 8.20mm

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:
27 x 2 Pin Barrier Terminal Block , Double Levels Power Terminal Blocks Pitch 8.20mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

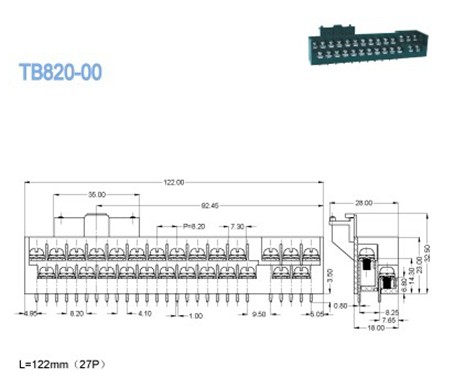

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 10 300 / 10
Wire Range AWG	14-22 14-22
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	320 / 24 320 / 24 400 / 24
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm2	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass Tin / Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	6-7
Screw / Torque / lbf.in	M 3/ 5-7

27 x 2 Pin Barrier Terminal Block , Double Levels Power Terminal Blocks Pitch 8.20mm

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
