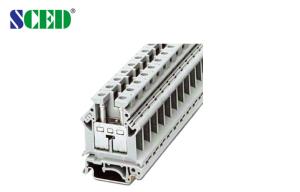

12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power

Name: 122mm Width Waterproof Din Rail Terminal Blocks For Electric Power
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-16N

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Color : Grey

Deck : Double decks

Type : Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

Width : 12.2mm

Wire Range : 22-4

Contact Now

12.2mm Width Waterproof Din Rail Terminal Blocks For Electric Power

Detailed product Description:

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

How to order:

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-16N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-12 Imax: 101A
Insertion Bridge	EB 10-12 Imax: 70A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB10
Screwdriver	SZS 1.0×4.0
Rail Material	aluminum
Dimensions mm	12.2/42.5/2.0
Height (U35: 7.5/U35: 15G 32) mm	54/61.5/59
Screw / Torque Nm	M4 / 1.5-1.8
Stripping Length mm	11
IEC Technical Data
Max. Load Current / Cross Section A / mm²	101 / 25
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
