Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

  • 1
  • 2

Brand Name : SCED

Model Number : TB1450a-05-C

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Available Poles : 4-14 poles

Item : Barrier

Wire Range : 22-6 AWG

Material : PBT

Color : Black

Operating Temperature : -40°C ~ 105°C

Terminal : Brass

Rated Current : 57A

Contact Now

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block PBT M5 22-6 AWG Power Terminal Block

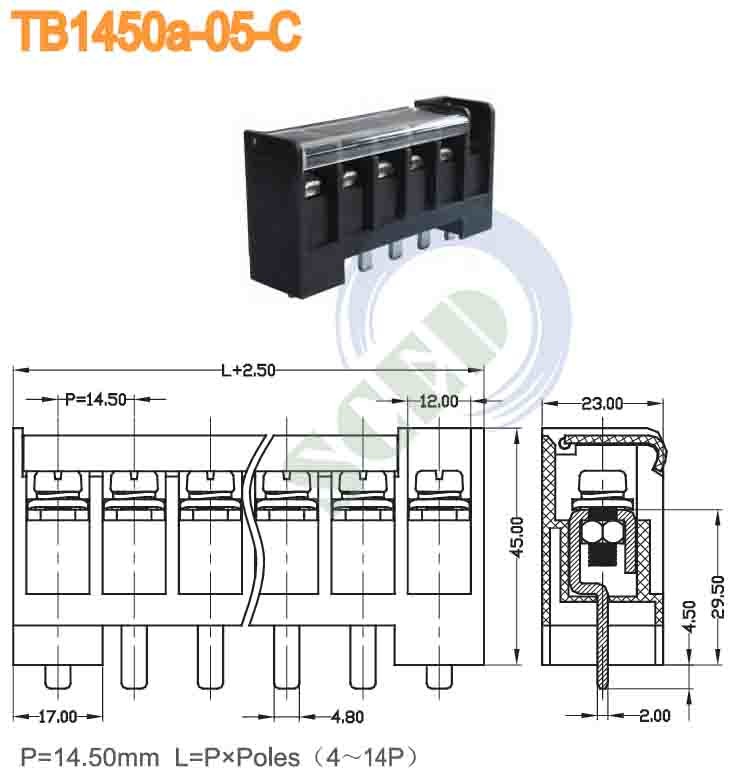

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 5
Wire Range AWG 20-6 20-6 20-6
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 7
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4*5.2
Stripping Length mm 12-15
Screw / Torque / lbf.in M5 / 18-20

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 14.50mm 600V 57A 4-14P Barrier Terminal Block Connector PBT M5 22-6 AWG Power Terminal Block
