Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row

  • 1
  • 2

Brand Name : SCED

Model Number : TB2100-00

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Operating Temperature : -40°C to +105°C

Wire Range : 18-3 AWG

Current : 600V

Screw : Steel

Termination Method : Screw Clamp

Terminal Material : Brass

Contact Now

Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks​

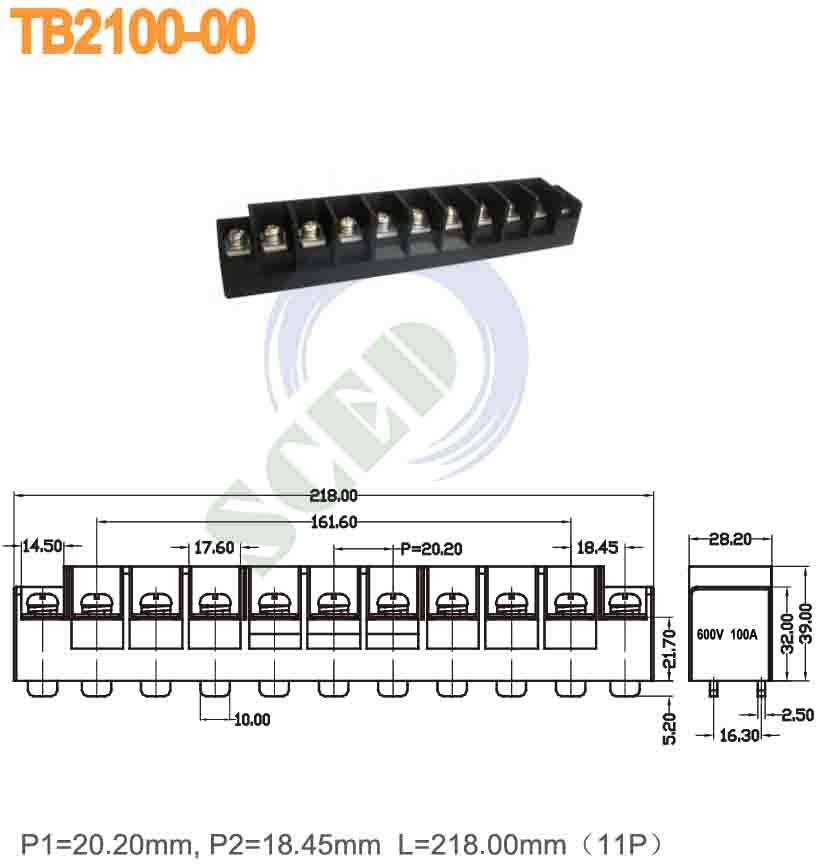

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 100 600 / 100 600 / 5
Wire Range AWG 18-3 18-3 18-3
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.9*10.4
Stripping Length mm 17-19
Screw / Torque / lbf.in M6 /20-22

Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch 20.20mm 600V 100A TB Series 11P PBT M6 Barrier Terminal Blocks Single Row
