Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

  • 1
  • 2

Brand Name : SCED

Model Number : TB2000-03F-C

Certification : UL, CE, CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 Working Days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Material : PBT

Color : Black

Current Rating : 65A

Available Poles : 3 Poles

Rated Voltage : 600V

Certifications : CE, RoHS

Wire Range : 26-4

Contact Now

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block PBT M5 Power Terminal Block​

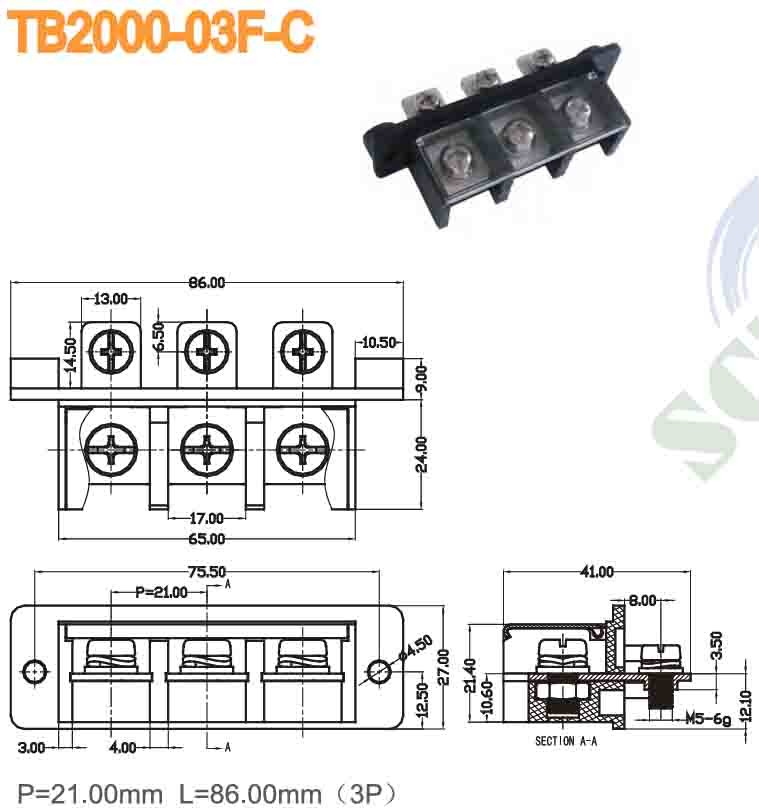

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 65 600 / 65 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 65 500 / 65 800 / 65
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 4.0x13.4
Stripping Length mm 15-17
Screw / Torque / lbf.in M 5 /16-18,M6/20-22

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Single Row PBT M5 Power Terminal Block Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
