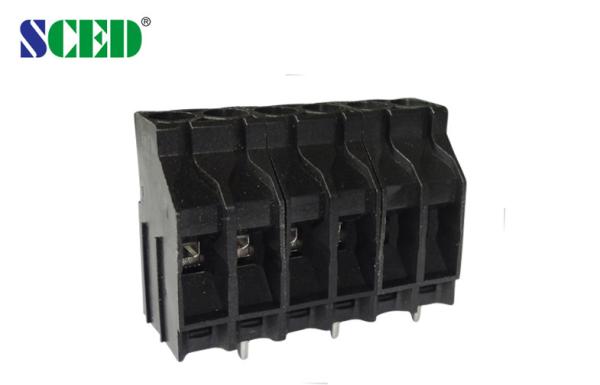

PCB Terminal Block Eurostyle

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ952-03-A1

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : 2P-16P

Pitch : 6.35mm

Rated Current : 30A

Rated Voltage : 600V

Type : PCB Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks

Wire Range : 10-22

Contact Now

PCB Terminal Block Eurostyle

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
How to order:
PCB Terminal Block Eurostyle


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 30

600 / 30

Wire Range AWG

10-22

10-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

1000 / 32

1000 / 32

1000 / 32

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

4.0

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.6

Stripping Length mm

7-8

Screw / Torque / lbf.in

M3 / 4.4-5.3



PCB Terminal Block Eurostyle


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
