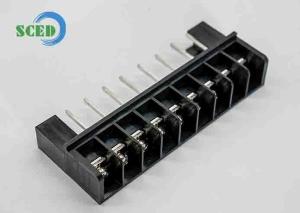

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

  • 1
  • 2

Brand Name : SCED

Model Number : TB1100-03

Certification : UL, CE,CQC

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Flammability Rating : UL94, V-0

Available Poles : 3-14 Poles

Stripping Length : 9-10mm

Wire Range : 10-22 AWG

Torque : 10-11 lbf.in

Plating : Tin/Nickel plated

Pcb Mount : Inserting and Welding

Rated Current : 30A

Color : Black

Contact Now

Power Barrier Terminal Block 10-22AWG Pitch 11.00mm 600V 30A 3-14P Terminal Block

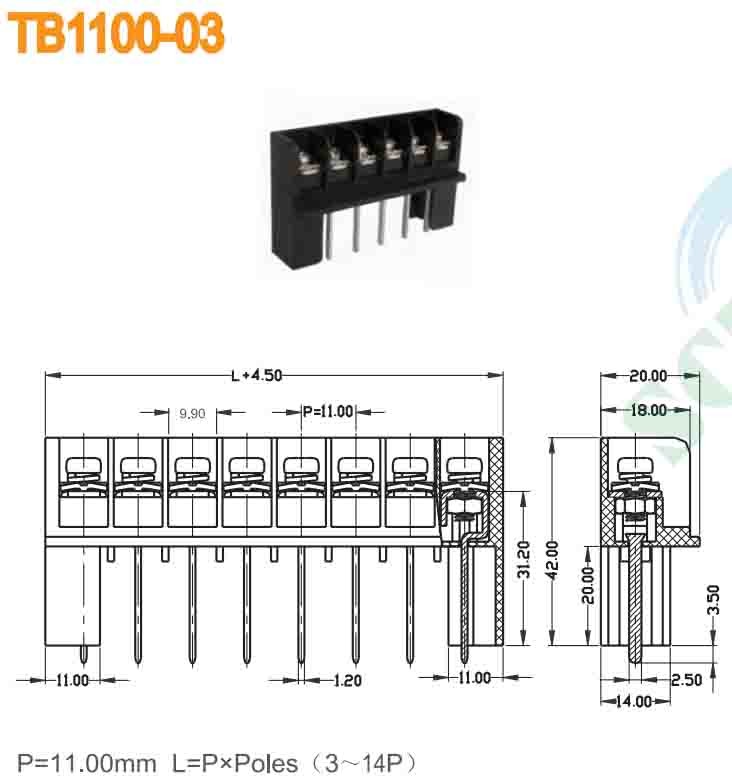

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 5
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 1.6x2.9
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-11

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Power Barrier Terminal Block 10-22AWG 11.00mm Pitch 600V 30A Stripping Length 9-10mm Tin/Nickel Plated 3-14P
