Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

Name: Two Row Terminal Block Barrier Connector 762mm Pitch Barrier Strips
Brand: SCED
Price: 1 USD

Quality Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips wholesale

Brand Name : SCED

Model Number : TB762-04-GY

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Levels : Double levels

Wire Inlet : Right angle wire inlet

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 4*2P - 20*2P

Pitch : 7.62mm

Rated Current : 15A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 14-22

Contact Now

Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military, Elevator, etc..

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double levels; □Triple levels

Standard color: Grey. Other colors also available, please refer to below How to Order and select

the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 15 300 / 10
Wire Range AWG	14-22 14-22
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	250 / 24 320 / 24 400 / 24
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm2	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3/ 5-7

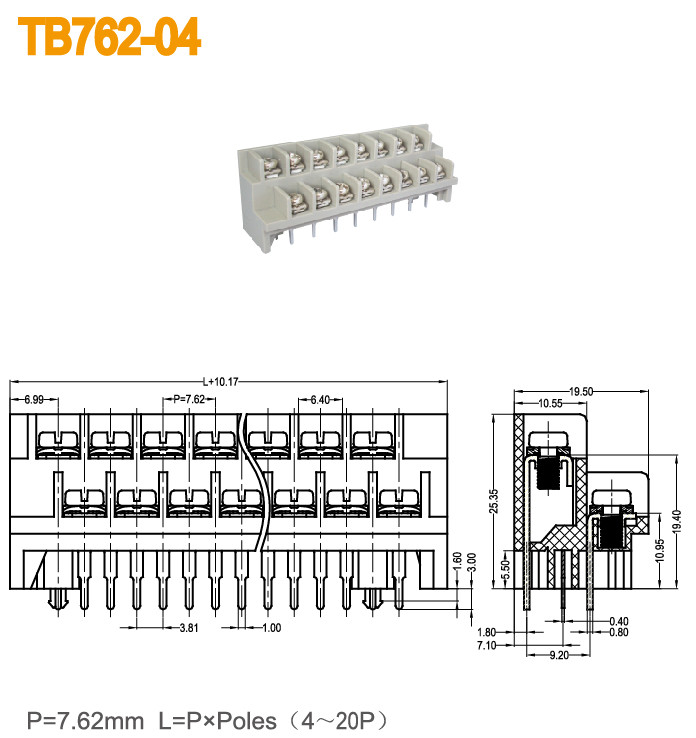

Drawing and Photos

Product Tags:

electrical terminal block

barrier type terminal block

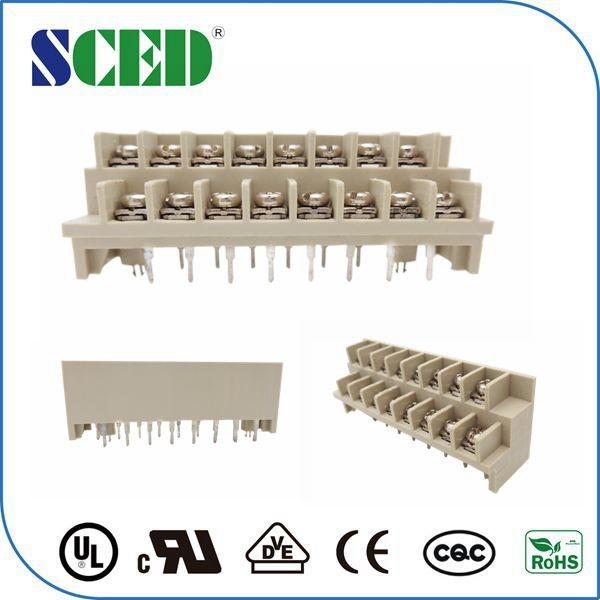

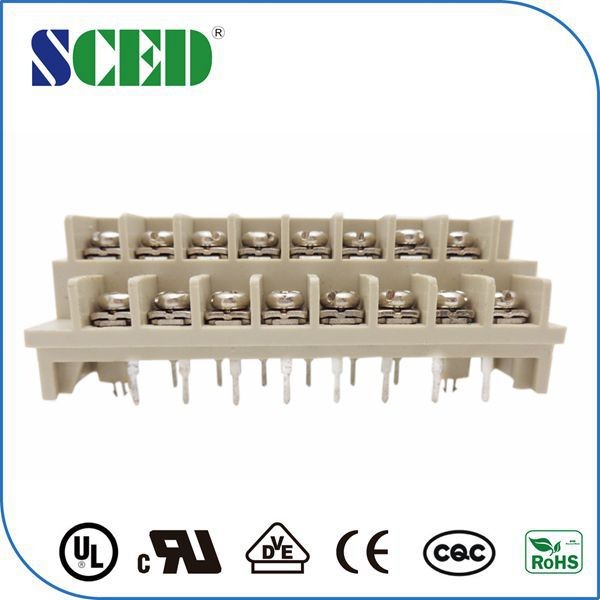

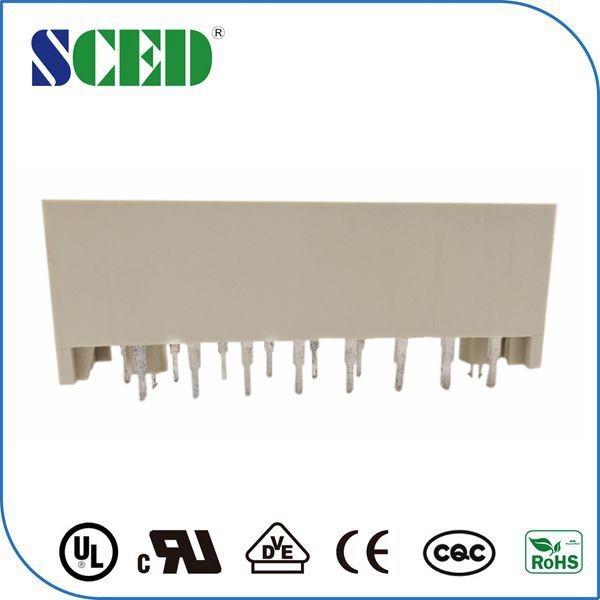

Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips Images
