PCB Terminal Block Connector Euro Style 7.62mm pitch green color 2 - 24P

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ508-17

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

PCB Terminal Block Connector Euro Style 7.62mm pitch green color 2 - 24P

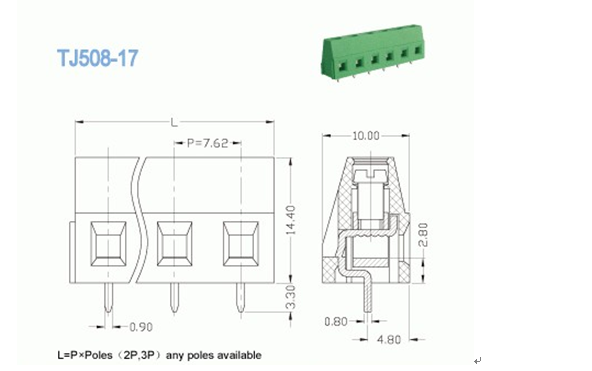

Parameter and Drawing Specifications:

UL Technical Data

B

 C D
Rated Voltage / Current V/A 300/10 300/10
Wire Range AWG 12-26 12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.5
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3

PCB Terminal Block Connector Euro Style 7.62mm pitch green color 2 - 24P

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

PCB Terminal Block Connector Euro Style 7.62mm pitch green color 2 - 24P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

PCB Terminal Block Connector Euro Style 7.62mm pitch green color 2 - 24P
